Difference between Applications and Applets
Java applications are those
applications that run using Java interpreter.
Java applications and applets are the two fundamental forms of any Java
program.
Applet is nothing but a Java
program that executes on web pages.
Actually it is a bytecodes, rather than the source code, that we
download and then run. To use an applet,
we need a Java enabled browser, which will interpret the bytecodes for us. It is because of this applet, that Java today
is the top among all the programming languages.
Java applications are generally
executed from a command-line prompt using JDK(Java Development Kit). Applets on the other hand are executed on any
browser supporting Java. Netscape
Navigator, Microsoft Internet Explorer and the Sun’s HotJava Browser are the
most commonly used browsers for executing Java applets. They can also be run
using an appletviewer tool that is included in the JDK.
For an applet to run, it must be
included in a web page using HTML pages.
When a browser loads a web page including an applet, the browser
downloads the applet from the web server and runs it on the users own system. Java interpreter is not required specifically
for running the applets at the user end.
It is already built in the browser.
When a Java program is written
and saved, Java’s standard class library is included automatically. Since applets run inside a browser, the
programmer is just required to create an interface and is saved from the task
of writing codes to run the applet.
Applet class
Applet is a class and all applets
are the subclasses of this applet class.
The applet class is present in the java.applet package. Applets includes several methods that help in
controlling the executing applets. These
methods include starting and stopping of the applets, loading and displaying of
images, loading and playing audio clips.
Applet must import java.applet
and java.awt. AWT stands for Abstract Window
Toolkit. Applets run in a window, hence
support for that window has to be included.
Applets contain a single default class without any parameters. Applets are not executed by the Java run-time
interpreter; instead they are executed by a Java compatible web browsers or
with the help of Applet Viewer.
Execution of applets does not
begin with the main( ) method. The
execution of the applet is controlled by some other methods. The output of the applet is generated and
handled by an AWT method called drawstring( ) present in AWT package. This method specifies the x and y locations
and the string to be drawn on the screen.
After writing an applet and compiling it, it is included in an HTML file
that uses HTML tag. A Java enabled web
browser then executes the applet.
paint ( ) method
paint ( ) is used to draw an
output on the screen. This method has
only one parameter which is of type ‘Graphics’.
drawString ( ) method
This method is the member of the
Graphics class. It is used to draw the
string on the screen.
Activities in an Applet
The activities carried out in the
life cycle of an Applet is performed by the methods present in the package
‘java.applet’.
Ø
First step is Applet is created.
Ø
Next step is initialization. This step is
occurs when an applet is loaded into memory.
init ( ) method is overridden
to provide behavior for the initialization.
This method is called when the appletviewer or browser loads the applet
for an execution.
Ø
Once the applet is initialized it is started. The difference between initialization and
starting is that, an applet can be started many times but initialization can
happen only once.
Ø
Once the use leaves the page or the page is
minimized, the stop ( ) method is
called. This method performs any tasks
that are required to suspend the applets execution.
Ø
Finally we have the destroy ( ) method. Which
cleans up behavior for the applet. This
method is called when the applet is being removed from memory- normally when
the user of the browser exists the browser session. This method performs any task that are
required to destroy resources allocated to the applet.
Example 1(First Applet)
import java.applet.Applet;
import java.awt.Graphics;
public class FirstApplet extends
Applet
{
public void paint(Graphics g)
{
g.drawString("Welcome to
Sandhyashree Sports Group",10,50);
}
}
Compile this file with Java
compiler. To execute this file we need
to create an HTML file, which uses the APPLET tag.
The HTML file will be as
follows:-
<HTML><HEAD>
<TITLE>SPORTS GROUP
SANDHYASHREE</TITLE>
</HEAD>
<BODY>
<APPLET CODE =
"FirstApplet.class" WIDTH = 200 HEIGHT =150>
</APPLET
</BODY></HTML>
Execute the above file with the
following command:-
appletviewer FirstApplet.html
Example2 (Applet Life Demo)
import java.awt.*;
import java.applet.Applet;
public class AppletLife extends
Applet{
int init_count=0;
int start_count=0;
int stop_count=0;
int destroy_count=0;
public void paint(Graphics g){
g.setColor(Color.yellow);
g.fillRect(0,0,size(
).width,size( ).height);
g.setColor(Color.red);
g.drawLine(120,20,120,220);
g.drawLine(120,220,300,220);
g.setColor(Color.red);
g.drawString("Init Method(
)",5,50);
g.drawString("Start Method(
)",5,100);
g.drawString("Stop Method(
)",5,150);
g.drawString("Destroy
Method( )",5,200);
g.setColor(Color.green);
for(int
x=(120+25);x<300;x+=25){
g.drawLine(x,20,x,199);
}
g.setColor(Color.black);
g.fillRect(120,30,init_count*25,40);
g.fillRect(120,80,start_count*25,40);
g.fillRect(120,130,stop_count*25,40);
g.fillRect(120,180,destroy_count*25,40);
}
public void init( ){
init_count++;
System.out.println("Init
Method Activated");
repaint( );
}
public void stop( )
{
stop_count++;
System.out.println("Stop
Method Activated");
repaint( );
}
public void destroy( )
{
destroy_count++;
System.out.println("Destroy
Method Activated");
repaint( );
}
public void start( )
{
start_count++;
System.out.println("Start
Method Activated");
repaint( );
}
}
HTML Code for above File:
<HTML>
<HEAD>
<TITLE>SPORTS GROUP
SANDHYASHREE</TITLE>
</HEAD>
<BODY>
<APPLET CODE =
"AppletLife.class" WIDTH = 400 HEIGHT =350>
</APPLET
</BODY>
</HTML>

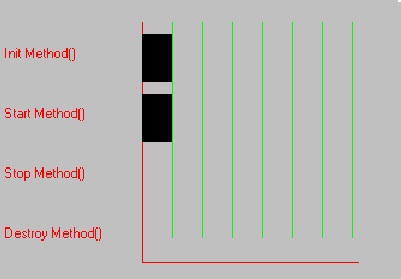

Program Output is as follows
Practical Session
Example 1(Printing Factorial)
import java.awt.*;
import java.applet.*;
public class Factorial extends
Applet{
public void paint(Graphics g){
int number=5;
int factorial=1;
for(int i=number;i>0;i--){
factorial=factorial*i;
}
String num="Factorial of 5
is :"+String.valueOf(factorial);
g.drawString(num,20,50);
}
}
Applet Code For above Program
<HTML>
<HEAD>
<TITLE>Factorial</TITLE>
</HEAD>
<BODY>
<APPLET CODE = "Factorial.class"
WIDTH = 300 HEIGHT =250>
</APPLET
</BODY>
</HTML>
Example 2(Sorting Array)
import java.awt.*;
import java.applet.*;
public class ArraySort extends
Applet{
int z[]={87,65,54,78,43,21};
int xPos=20;
public void paint(Graphics g){
g.drawString("The Original
Series is : ",25,10);
for(int l=0;l<z.length;l++){
xPos +=50;
g.drawString(z[l] + "
",xPos,30);
}
sort(z,g);
}
public void sort(int x[],Graphics
e){
int swap;
xPos=20;
int a =x.length;
for(int i=0;i<(a-1);i++){
for(int j=i+1;j<a;j++){
if(x[i]>x[j]){
swap=x[i];
x[i]=x[j];
x[j]=swap;
}
}
}
e.drawString("The Sorted
Series is : ",25,60);
for(int l=0;l<a;l++){
xPos +=50;
e.drawString(x[l]+ "
",xPos,80);
}
}
}
Applet Code For Above Program
<HTML>
<HEAD>
<TITLE>SORTING
ARRAY</TITLE>
</HEAD>
<BODY>
<APPLET CODE =
"ArraySort.class" WIDTH = 500 HEIGHT =250>
</APPLET>
</BODY>
</HTML>
Example 3(Singraph Image
Creation)
import java.awt.*;
import java.applet.*;
public class SinGraph extends
Applet
{
int x1,x2,y1,y2;
double func(double x)
{
return((Math.cos(x/5)
+Math.sin(x/7) +2) *getSize( ).height/4);
}
public void paint(Graphics g){
for(int x=0;x<getSize(
).width;x++){
y1=(int)func(x);
y2=(int)func(x+1);
g.drawLine(x,y1,x+1,y2);
}
}
}
Applet Code For The Above Program
<HTML><HEAD>
<TITLE>Sin Graph Image</TITLE>
</HEAD><BODY>
<APPLET CODE =
"SinGraph.class" WIDTH = 600 HEIGHT =450>
</APPLET>
</BODY>
</HTML>
Output of the above Program
Example4(Creating Maps)
import java.awt.Graphics;
import java.awt.Polygon;
public class Map extends
java.applet.Applet{
public void paint(Graphics
screen){
screen.drawString("India
screen.drawLine(85,80,160,75);
screen.drawRect(2,2,500,600);
screen.drawRoundRect(182,61,43,24,10,8);
int x [] =
{1,34,54,72,144,234,290,360,350,290,190,191,120,90,81,12,10};
int y [] =
{12,15,24,81,209,310,278,274,188,171,174,118,56,68,49,37,12};
int pts = x.length;
Polygon poly = new Polygon (x, y,
pts);
screen.drawPolygon(poly);
screen.fillOval(235,140,15,15);
screen.fillOval(225,130,15,15);
screen.fillOval(245,140,15,15);
for (int ax =50; ax<150;
ax+=10)
for (int ay =120; ay<320;
ay+=10)
screen.drawArc(ax,ay,10,10,0,-180);
}
}
